Optimize the results of your visual inspection by employing automatic product handling and a perfectly adapted inspection environment.

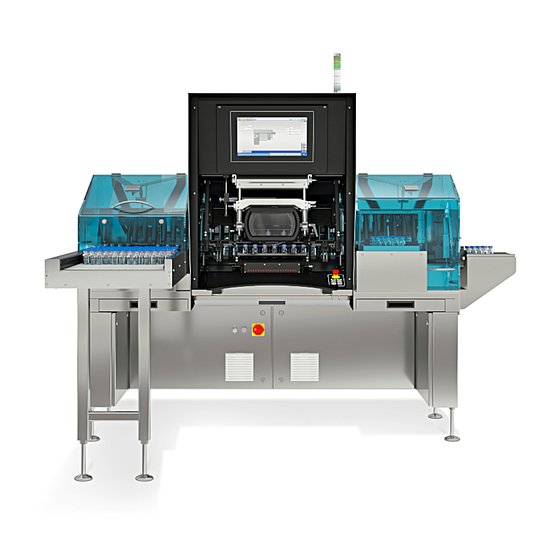

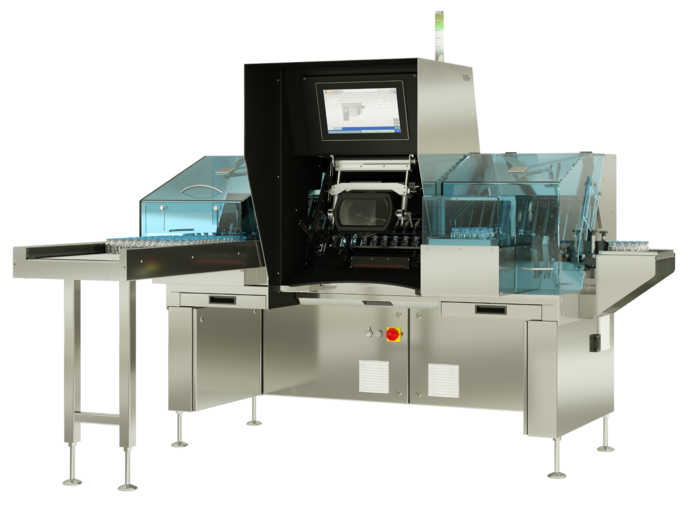

More accurate, space-saving, and up to five times faster than manual inspection: The Seidenader V90+ supports your operators in simultaneously checking multiple criteria such as foreign matter in the product, impurities and damage to a container’s sidewalls, bottom, shoulder or closure area. This is ensured by various illuminations, mirrors and a magnifying glass.

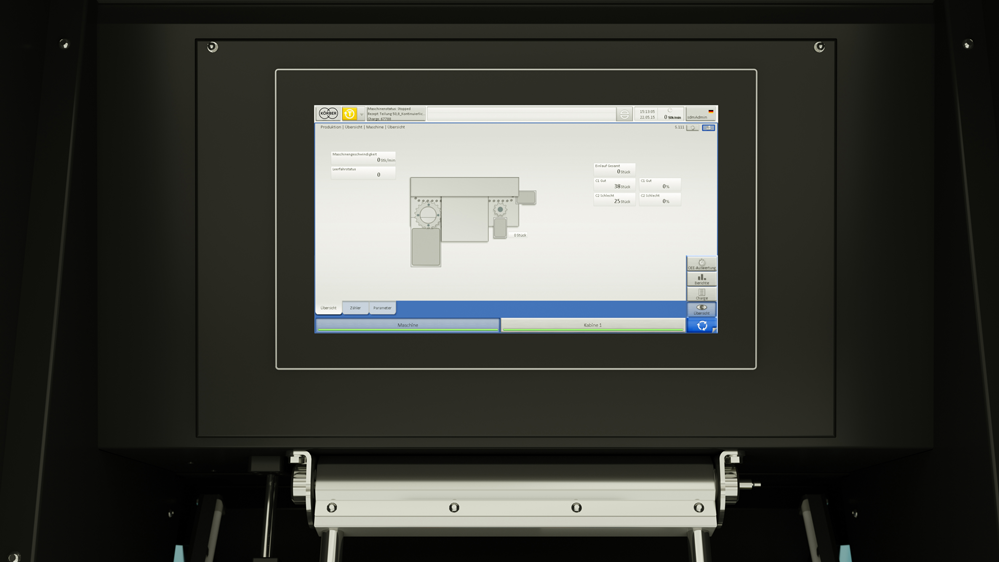

Parameters such as rotation speed or light intensity are stored in the HMI along with the respective recipe and are automatically loaded to enable reproducible inspection settings. The high-speed rotation system, which is driven by a servo motor, swirls up foreign matter inside the liquid for particle inspection. The container then rotates around its axis at an individually adjustable speed in front of the operator for a 360° inspection, so that also cosmetic defects on the entire surface are detected. An LED feedback bar confirms the status of the container via colored luminous markings. This enables the operator to see at a glance whether he or she has marked the container as defective or not.
If you want to inspect different products on your machine, it can be quickly and tool-free adapted to other formats.

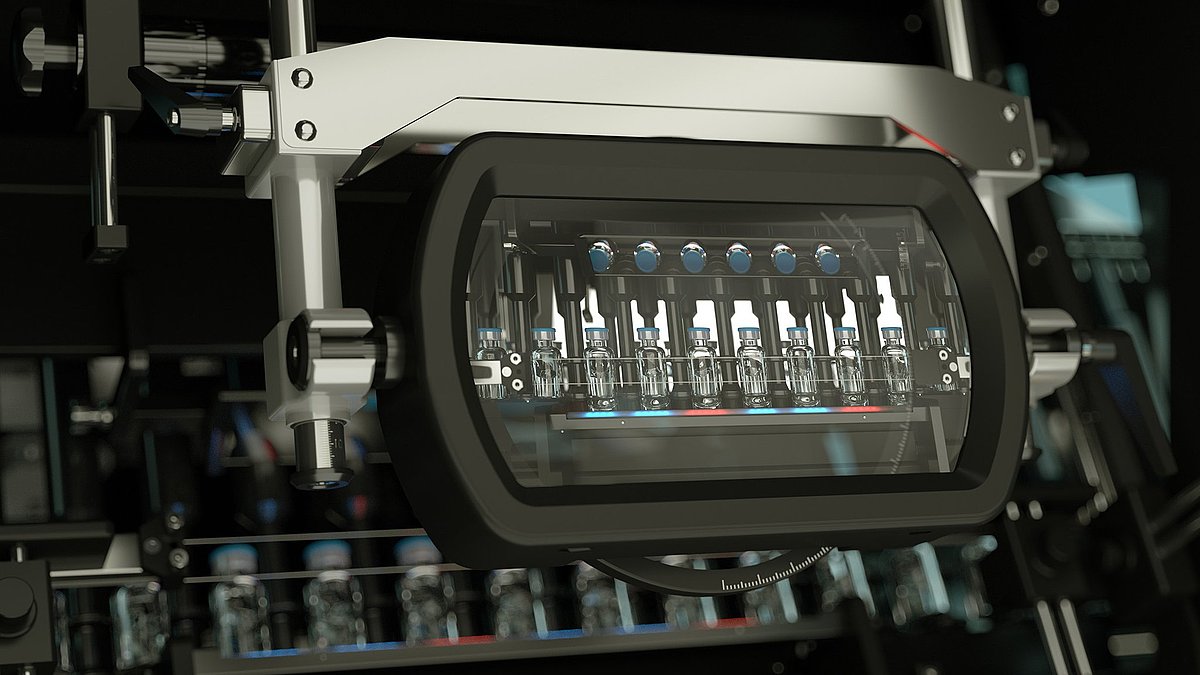

A magnifying glass enables the operator to easily detect even the smallest defects. With a swipe of the finger, he or she marks faulty containers, and the LED feedback bar displays the status.
Moveable mirrors, various lighting options, and individually adjustable speed support the process of monitoring a wide variety of inspection criteria.
For a product changeover, simply exchange the format parts quickly and without tools
With the V90+ up to 9,000 vials, bottles, ampules, cartridges or syringes can be inspected per hour

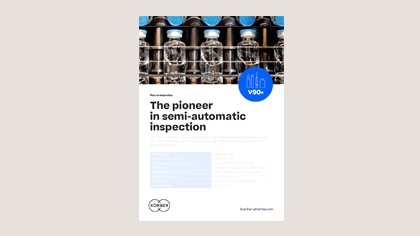

Technical details of our V90+ semi-automatic inspection machine

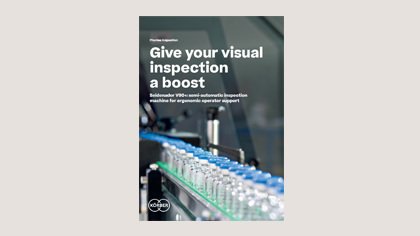

Comprehensive overview of the features and benefits of our semi-automatic inspection machine V90+

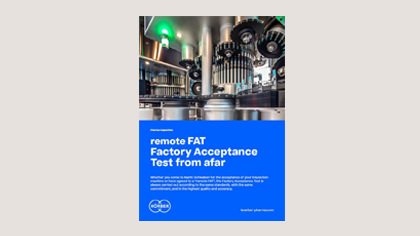

The Remote Factory Acceptance Test for Seidenader Solutions: preparation, implementation, follow-up
Our machines combine optimally adapted handling, precise image processing, and innovative inspection technologies for maximum efficiency.
Using this handy table-mounted device, you can flexibly analyze causes of defects or check defect samples.
